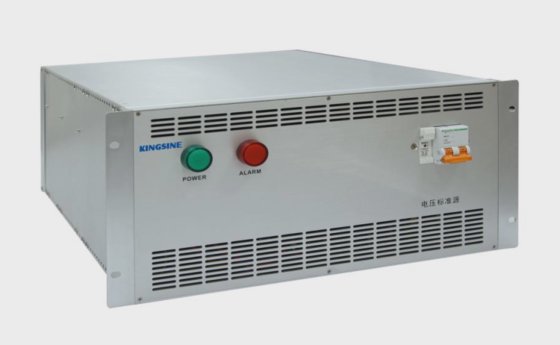

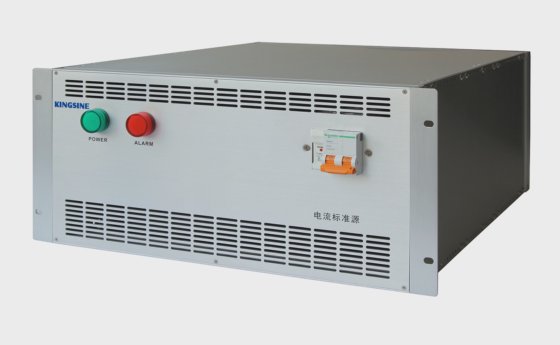

KINGSINE KS1212 Standard Source of Distribution Terminal Automatic Testing Platform en Shenzhen, Guangdong, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Range
- 85V...264V AC
- Power
- 5000 VA
- Accuracy
- <1 ms
- Resolution
- 0.1°
- Harmonic times
- 2...20 Times
- Ac voltage
- 220V±20%
- Frequency
- 47 Hz...65 Hz
- Temperature
- -20℃…70℃
- Humidity
- ≤95%,
- Weight
- <55 kg
- Dimension
- 358mm×149mm×297mm
- Communication port
- 1×RJ45
- Subcategoría
- Power source and calibrator
- ID de Anuncio
- 94451701
Descripción
● KS1212 is high accuracy, high power, wide output range Standard Source product develop by KINGSINE which is customize for distribution terminal automation testing platform.
● 24 output Channels, 12x450V + 12x100A. Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
● High burdens ability, 750VA / each current sources, total power up to 1500VA of all current channels, and 300VA / each voltage sources, total power up to 600VA of all voltage channels.
Basic Functions
24 output Channels, 12 channels voltage and 12 channels current. All channels magnitude,Frequency,Phase can be adjust separately.
High power, current output power 750VA/phase. Voltage output power 300VA/phase.Total power of current can reach 1500VA, total power of voltage can reach 600VA.
Current output 12×100A/phase,voltage output 12×450V.
Apply IRIG-B synchronize function. GPS module internal.
