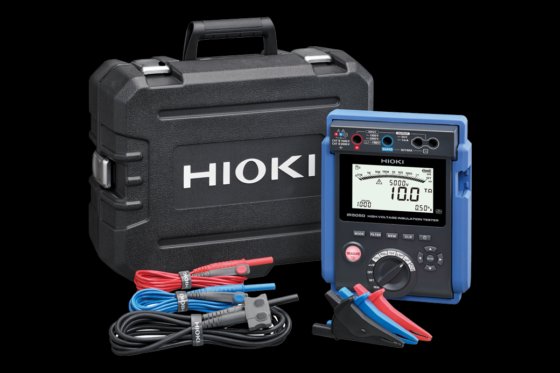

HIGH VOLTAGE INSULATION TESTER IR5050 en Nagano, Japón
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Measurement parameters
- • Insulation resistance • Leakage current • Voltage • Capacitance (DD function)
- Max. rated voltage to terminals
- 1000 V AC, 2000 V DC
- Max. rated voltage to ground
- 1000 V (CAT IV), 600 V (CAT III)
- Operating temperature and humidity range
- -20°C to 50 °C (*1) (no condensation)
- Storage temperature and humidity range
- -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation)
- Dustproof/waterproof
- IP40 (with protector attached, excluding terminals) IP65 (CARRYING CASE C0212)
- Standards
- EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester)
- Power supply
- • LR6 (AA) alkaline battery × 8 • HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8
- Continuous operating time (*2)
- Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication
- Dimensions and weight
- 195 mm (7.68 in.) W × 254 mm (10 in.) H × 89 mm (3.50 in.) D, 1.7 kg (59.97 oz.) (including batteries)
- Included accessories
- Test lead L9850-01 ×1, Test lead L9850-02 ×1, Test lead L9850-03 ×1, Alligator clip L9851-01 ×1, Alligator clip L9851-02 ×1, Alligator clip L9851-03 ×1, Carrying Case C0212 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, Operating precautions ×1
- Insulation diagnosis
- PI, DAR, DD, SV, Ramp, Timer
- Others
- Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off.
- Test voltage range
- DC 250 V to 5.20 kV DC
- User-set test voltage
- 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments
- Test voltage preset
- 250 V
- Guaranteed accuracy range (1)
- 0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt
- Guaranteed accuracy range (2)
- 2.51 GΩ〜500 GΩ ±20% rdg
- Rated current
- 1 mA to 1.2 mA
- Short-circuit current
- 2 mA or less
- Possible number of measurements
- 200 times or more on one set of fully-charged batteries
- Measurement range (auto)
- 10 nA
- Display range
- 0.0 nF to 99.9 nF
- Resolution
- 0.1 nF
- Guaranteed accuracy range
- 30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC
- Accuracy
- ±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF)
- Input resistance
- 500 kΩ or more (DC, 45 Hz to 65 Hz)
- Overload protection
- 1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals)
- Measurement range
- 100 nF
- Subcategoría
- High-voltage digital insulation testers, 5 kv insulation testers
- ID de Anuncio
- 94132488
Descripción
When Z3210 is installed
Option

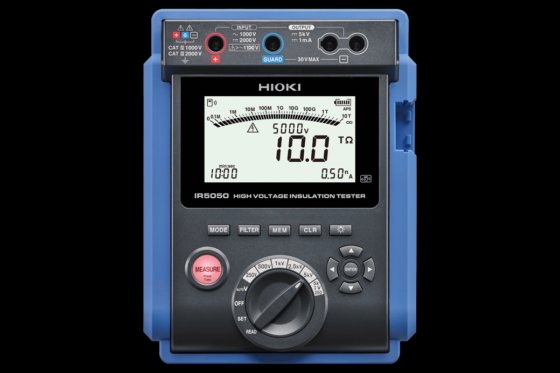

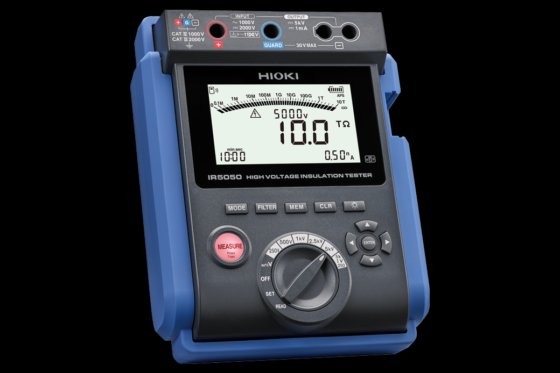

The IR5050 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ.
Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
Wide testing voltage range, up to 5000 V from 250 V DC
Wide measurement insulation range, up to 10 TΩ
Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
Compact and lightweight, equipped with an IP65-rated carrying case
Easy-to-use insulation resistance meter with intuitive rotary knob operation.
When the test object has very high resistance, the insulation resistance meter measures minute currents.
