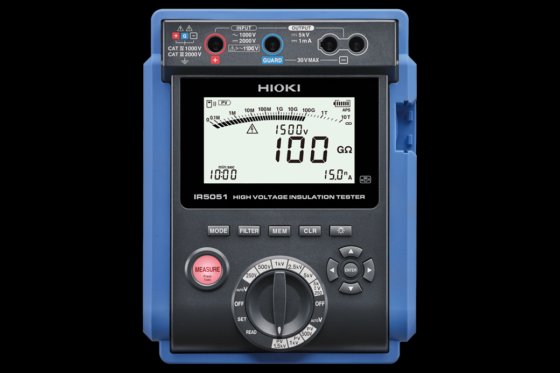

HIGH VOLTAGE INSULATION TESTER IR5051 en Nagano, Japón
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Measurement parameters
- • Insulation resistance • PV insulation resistance • Leakage current • Voltage • Capacitance (DD function)
- Max. rated voltage to terminals
- 1000 V AC, 2000 V DC
- Max. rated voltage to ground
- 1000 V (CAT IV), 600 V (CAT III)
- Operating temperature and humidity range
- -20°C to 50 °C (*1) (no condensation)
- Storage temperature and humidity range
- -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation)
- Dustproof/waterproof
- IP40 (with protector attached, excluding terminals) IP65 (CARRYING CASE C0212)
- Standards
- EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester)
- Power supply
- • LR6 (AA) alkaline battery × 8 • HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8
- Continuous operating time (*2)
- Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication
- Dimensions and weight
- 195 mm (7.68 in.) W × 254 mm (10 in.) H × 89 mm (3.50 in.) D, 1.7 kg (59.97 oz.) (including batteries)

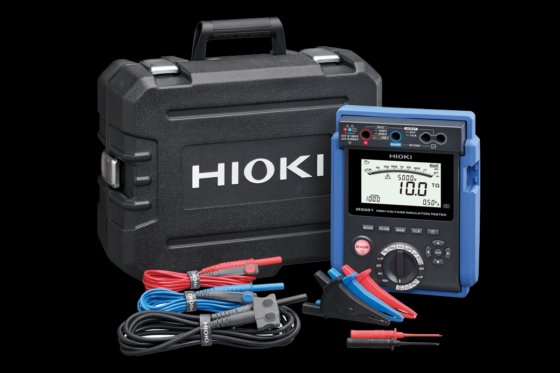

- Included accessories
- Test lead L9850-01 ×1, Test lead L9850-02 ×1, Test lead L9850-03 ×1, Alligator clip L9851-01 ×1, Alligator clip L9851-02 ×1, Alligator clip L9851-03 ×1, Test pin set L9852 ×1, Carrying Case C0212 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, Operating precautions ×1, Wireless adapter Z3210（IR5051-90 only）
- Insulation diagnosis
- PI, DAR, DD, SV, Ramp, Timer (*3)
- Others
- Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off, negative voltage notification
- Test voltage range
- DC 250 V to 5.20 kV DC
- Test voltage presets
- 500 V, 1 kV, 1.5 kV
- User-set test voltage
- 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments
- Test voltage preset
- 250 V
- Guaranteed accuracy range (1)
- 0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt
- Guaranteed accuracy range (2)
- 2.51 GΩ〜500 GΩ ±20% rdg
- Rated current
- 1 mA to 1.2 mA
- Open-circuit voltage
- From 0% to 10% of test voltage
- Short-circuit current
- 2 mA or less
- Possible number of measurements
- 200 times or more on one set of fully-charged batteries
- Measurement range (auto)
- 10 nA
- Display range
- 0.0 nF to 99.9 nF
- Resolution
- 0.1 nF
- Guaranteed accuracy range
- 30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC
- Accuracy
- ±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF)
- Input resistance
- 500 kΩ or more (DC, 45 Hz to 65 Hz)
- Overload protection
- 1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals)
- Measurement range
- 100 nF
- Subcategoría
- Pv insulation resistance tester
- ID de Anuncio
- 94132459
Descripción
When Z3210 is installed
Option

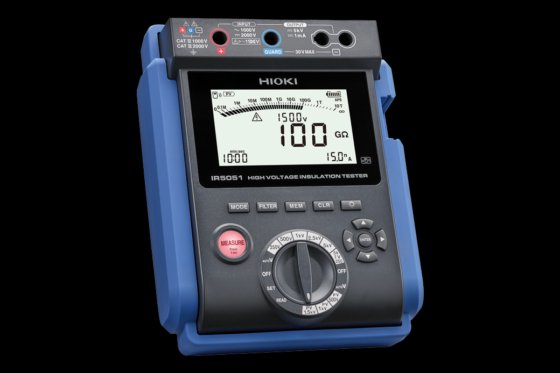

The IR5051 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ. In addition, the IR5051 is capable of testing the insulation resistance of solar PV systems during power generation, and has a CAT III 2000 V safety rating to allow testing of 2000 V PV systems.
Measure solar PV system insulation resistance safely and accurately while generating
Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
Wide testing voltage range, up to 5000 V from 250 V DC
Wide measurement insulation range, up to 10 TΩ
Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
