Automatic Brick Block Making Machine, Construction Block Making Machine en Shandong, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Gastos de envío
- Contacte al proveedor sobre el flete y el tiempo de entrega estimado.
- Pagos seguros
- Cada pago que realices está protegido por la plataforma.
- Política de reembolso
- Solicite un reembolso si su pedido no se envía, falta o llega con problemas con el producto.
- Certificación
- CE, ISO
- Personalizado
- Personalizado
- Grado automático
- Automático
- Automático
- Completamente automático
- Manera de trabajar
- Hidráulica y Vibración
- Moulds
- Personalizado
- Peso
- 6000kgs
- Paquete
- Estándar
- Transporte
- Contenedores
- Marca
- Dongfeng
- Materia prima
- Hormigón
- Bloques
- Bloques huecos, Ladrillos sólidos y adoquines de color
- Tiempo del ciclo
- 15 segundos
- Capacidad
- 1500 piezas por hora
- Tamaño de la paleta
- 1000*900*30mm
- Paquete de transporte
- Paquete estándar
- Especificación
- 4300x1500x2900mm
- Código de la hs
- 8474802000
- Capacidad de producción
- 500 juegos/año
- Subcategoría
- Brick making machine
- Subcategoría 2
- Automatic brick making machine
- Subcategoría 3
- Building material making machinery
- Subcategoría 4
- Manufacturing & processing machinery
- ID de Anuncio
- 91078516
Descripción

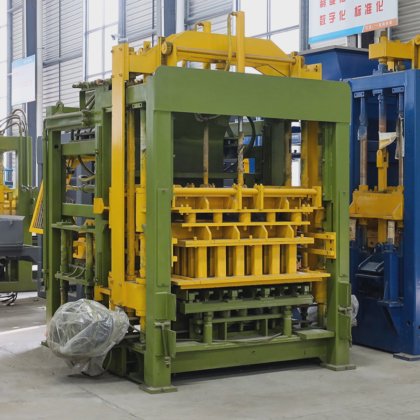

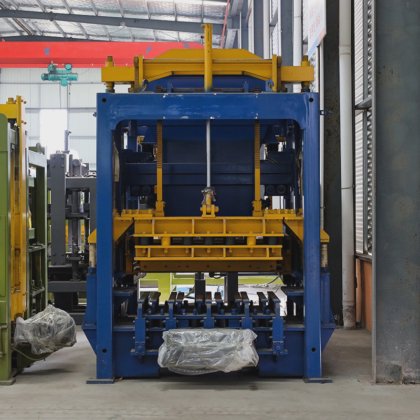

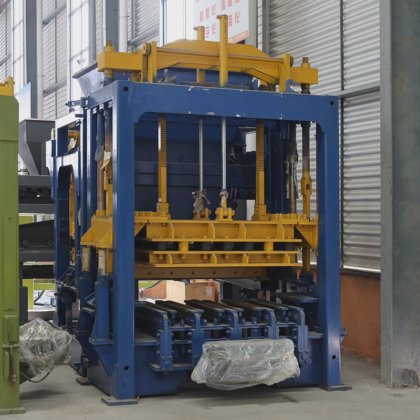

QT8-15 Block Making Machine Introduction :
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.
2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidities and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,
therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system."
Main Technical Specification:
Overall Dimension
4120×1620×2900(mm)
Rated pressure
21MPa
Main vibration form
Platform vibration
$60,000 USD
