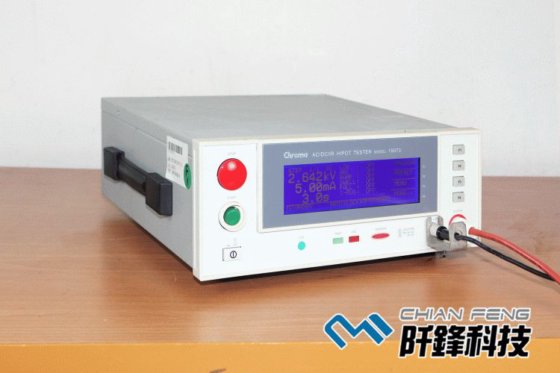

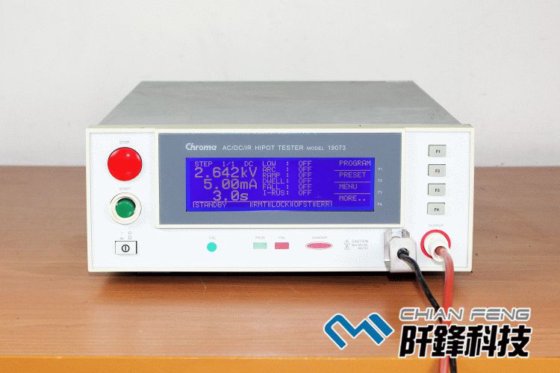

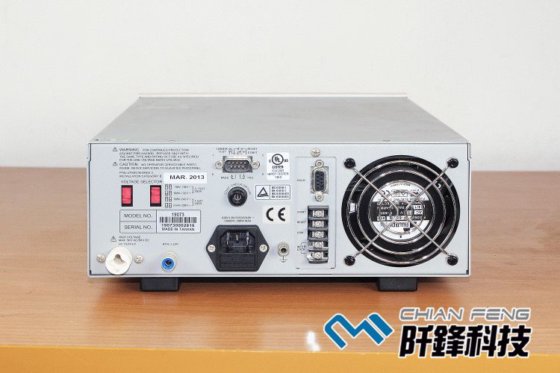

CHROMA 19073 耐壓測試儀
●產地: 致茂(台灣) Chroma●型號: 19073耐壓測試儀
●電壓範圍:AC:0-5KV DC:0-6KV●容量: AC:100VA DC: 30W
●時間控制: 60S (最長),●漏電流範圍:AC:0.1mA-20mA DC:0.1mA-6mA
●絶緣電阻範圍: 1-10 G歐姆, 電壓0.05KV-1KV
The Chroma 19073 AC/DC/IR Hipot Tester has all the features of the 19071 plus measurement of insulation resistance. The IR measurement range is from 1MΩ to 10GΩ with test voltages from 50 to 1000V DC. The front panel of the tester makes it easy to operate. The digital display and user friendly control allow test parameters and limits to be set easily without activating the high voltage.
Hipot Tester (AC/DC/IR) - direct replacement for Quadtech Sentry 30 Plus
Nist Calibration included
19073 Hipot Tester (AC/DC/IR) - Sentry 30 Plus
AC/DC/IR 3 in 1 hipot tester
AC 5kV and DC 6kV output
1kV insulation resistance test
Insulation resistance measurement from 1M to 50G
Ground continuity check
Open Short Check(OSC) function
GFI shutdown the instrument when imbalance current > 0.5mA
Flashover (ARC) detection
