WIRELESS HUMIDITY LOGGER LR8514 en Nagano, Japón
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Functionality
- [Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
- Number of channels
- 2 ch for temperature + 2 ch for humidity (2 sensors can be attached)
- Measurement items
- Temperature, Humidity
- Measurable range
- [Temperature] -40 ˚C to 80 ˚C, Range 100˚C f.s., Max. resolution 0.1˚C [Humidity] 0 to 100% RH, Range 100% RH f.s., Max. resolution 0.1%RH
- Measurement accuracy (using z2010/ z2011)
- [Temperature basic accuracy] ±0.5 ˚C (10 to 60 ˚C) *If outside above temperature range: Add 0.015 ˚C/ ˚C (-40 to 10 ˚C) or 0.02˚ C/ ˚C (60 to 80 ˚C) [Humidity basic accuracy] ±3% RH (20 to 30 ˚C, 20 to 90% RH), Hysteresis: ±1% RH (Added to the humidity measurement accuracy)
- Display items
- Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value
- Functions
- Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run
- Recording
- [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 to 30 sec, 1 to 60 min, 14 selections
- Power source
- AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable)
- Continuous operating time ([capacity] 500,000 data items for each channel) (23˚c)
- 3.5 months (Recording interval of 1 min, Bluetooth® OFF), 20 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410)
- Dimensions and mass
- 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.4 oz) (Not including the battery)
- Included accessories
- CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2
- Countries and regions where wireless operation is currently supported
- Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Colombia, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, Japan, Kenya, Latvia, Liechtenstein, Lithuania, Luxembourg, Macao, Malta, Myanmar, Netherlands, New Caledonia, New Zealand, Norway, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, Taiwan, Thailand, Turkey, United Arab Emirates (UAE), United Kingdom, United States, Viet Nam
- Note
- Use of devices that emit radio radiation requires approval in the country of use. Thus, use of the instrument in a country or region where they have not been approved may be subject to penalty as a violation of law.
- Subcategoría
- Data loggers, wireless, bluetooth®, radio
- ID de Anuncio
- 61137847
Descripción
Main unit only. Sensors sold separately: 1 year

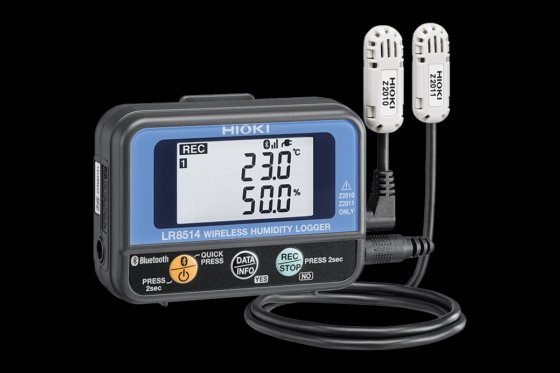

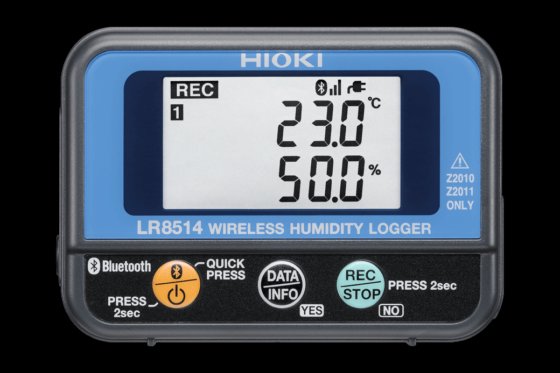

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8514 Wireless Humidity Logger provides easy, wireless collection of temperature and humidity data, and is the ideal tool for managing the environmental condition of production plants and agricultural sites.
High-precision, ±3% RH humidity sensor
Convenient for simultaneously recording and comparing temperature and humidity readings at 2 locations

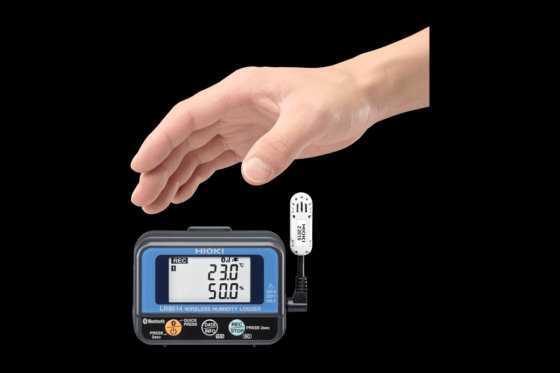

Compact, two-channel model fits where other devices don’t
Download measurement data to a tablet or computer with Bluetooth® wireless technology
Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
Store 500,000 data points per channel
Scan this QR Code with an Android device to access the Google Play download page directly
