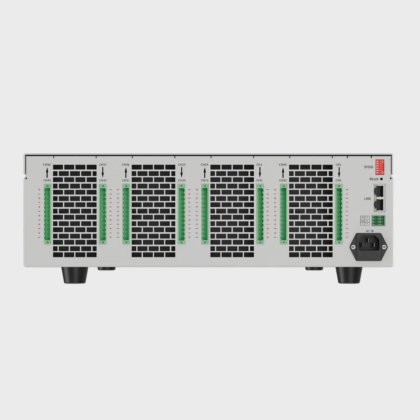

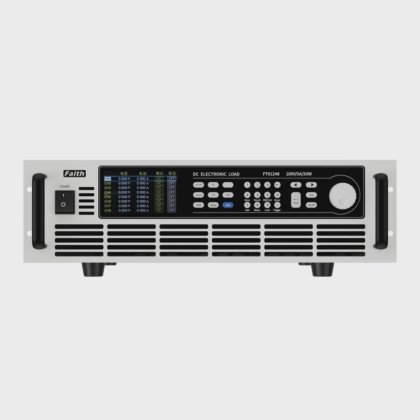

FaithTech Multichannel electronic load array FT6100 series en Midrand, Gauteng, Sudáfrica
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Ft6100
- FT6100 series dedicated chassis
- Ft61005-80-5
- Electronic load module ，80V/5A/50W*12
- Ft61018-80-20
- Electronic load module，80V/20A/180W*3
- Ft61036-80-20
- Electronic load module，80V/20A/360W
- Ft61054-80-30
- Electronic load module，80V/30A/540W
- Ft61072-80-40
- Electronic load module，80V/40A/720W
- Ft61108-80-60
- Electronic load module，80V/60A/1080W
- Ft61036-500-10
- Electronic load module，500V/10A/360W
- Ft61054-500-15
- Electronic load module，500V/15A/540W
- Ft61072-500-20
- Electronic load module，500V/20A/720W
- Ft61108-500-30
- Electronic load module，500V/30A/1080W
- Ft61236-100-5
- Electronic load module，100V/5A/50W*36CH
- Ft61248-100-5
- Electronic load module，100V/5A/50W*48CH
- Subcategoría
- Ac/dc
- Subcategoría 2
- Faithtech
- Subcategoría 3
- Dc electronic load
- ID de Anuncio
- 108275352
Descripción
The FT6100 series is a full-featured multi-channel programmable DC electronic load product based on highly reliable, highly integrated applications. Products are tailor-made for integrated applications and are highly cost-effective. In most integrated applications, it can replace the small power single electronic load, saving a lot of space for system construction, and significantly saving costs.
Developed specifically for embedded integrated applications, the FT6100 is a standard 19-inch chassis, equipped with RS485, LAN communication interfaces, and Modbus-RTU. Support Visual C++, C#, Delphi, Visual Basic, Labview and other most of the software platform for secondary development, users can customize their own application software according to needs.
| Application field
Production, aging and quality inspection of low-power power supply products such as low-power power supply, DC converter, mobile phone charger, 3C battery, BMS, etc.
