Manual IC Card Embedding Machine Milling and Embedding Machinery Line en Guangdong, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Function
- Telecom
- Material
- Pet, PVC, ABS, PE
- Read-write method
- SIMpass
- Label category
- Active
- Structure
- Read-only Card
- Application field
- Telecom
- Power supply mode
- Active Card
- Frequency
- Ultrahigh Frequency
- Data transmission mode
- Parallel
- Weight
- About 2300kgs
- Electric
- AC380V or 220V 50/60Hz
- Power
- 12kw
- Gas pressure
- 6.00 Kg/Cm²
- Compress air consumption
- 250L/Min
- Servo precision
- X, Y, Z= ±0.015mm
- Control technology
- PCB Positioning+Auto CAD + PC Control+ PLC+Ocr Det
- Power consumption
- 12.00kw
- Electricity input
- Voltage: AC380V 50/60Hz
- Current
- 25A
- Operator
- 1 Person
- Pass rate
- 99.80%
- Applicable materials
- All Kinds of Chips, ISO Standard Cards
- Equipped with machine
- Vacuum Cleaner (One Set) & Chiller (One Set)
- Speed
- 8000-8500 Chips/ Hour (Half Card or Quarter Card)
- Specification
- L3200*W870*H1620mm
- Subcategoría
- Rfid card
- Subcategoría 2
- Electrical & electronics
- Subcategoría 3
- Smart card & card reader
- ID de Anuncio
- 105886085
Descripción
Product Description
Item No. JGCFT-8000+
Dimension H1870*W1010*L3900mm
Weight Approx. 2300kg
Electricity Input Voltage: AC380V 50/60Hz Current: 25A
Power Consumption 12.00KW
Compressed Air 6.00 kg/cm²
Compress Air Consumption 250L/min
Control Technology PCB positioning+Auto CAD + PC control+ PLC+OCR detection
Servo Precision: X, Y, Z= ±0.015mm
Tolerance ±0.02mm
Operator 1 person
Pass Rate 99.80%
Applicable materials All kinds of Chips, ISO standard cards
Speed 8000-8500 Chips/ hour (Half card or quarter card) 5000-5500 Chips/hour (ISO ID-1 card
Equipped with machine Vacuum Cleaner (one set) & Chiller (one set)

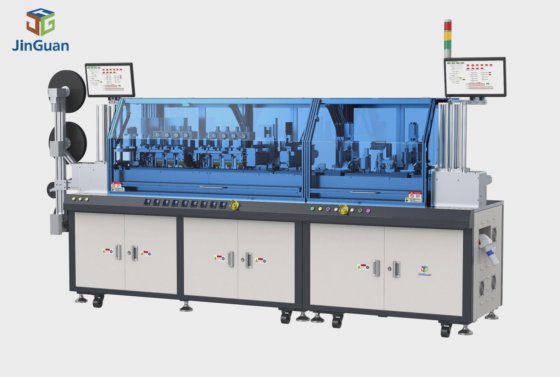

JGCFT-8000+ is a combi production line of High Speed Card Milling, Module Detection, Laminating and Module Embedding in one operation.
