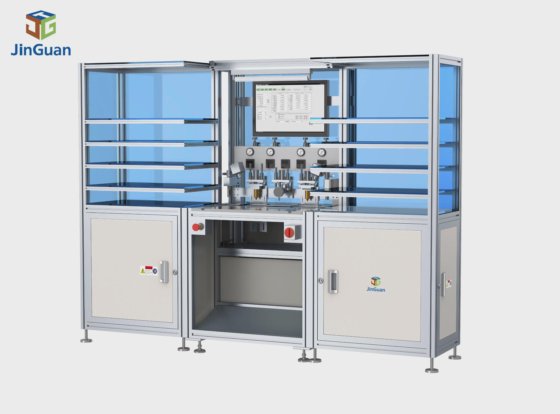

Card Sheet Layer Collating Machine Smart Card Sheet Collating Machine en Guangdong, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Grado automático
- Totalmente automático
- Servicio posventa
- De por vida
- Precisión de procesamiento
- 0.01~0.02(mm)
- Clasificación de resultados
- Máquinas herramientas CNC de alta gama
- Peso
- Alrededor de 200 kg
- Eléctrico
- AC 220V/50 Hz
- Potencia
- 1kw
- Velocidad
- 500cph
- Operador
- 1 persona
- Especificación
- L1250 × W300 × H1600 mm
- Categoría
- Procesamiento en China
- Subcategoría
- Smart card making machine
- Subcategoría 2
- Manufacturing & processing machinery
- ID de Anuncio
- 105885596
Descripción
Product Description
Sheet c
ollating machine
Item No.:
JGDZ-500+
C
Features
Stable running, flat chip placing and accurate position
Layouts can be saved by CPU and each one can be used directly
Precise position locating controlled by servo system
Advanced dispensing technology is used to ensure placing of chip in good effect.
Dowel positioning in the material installation and vacuum absorption
Easy operation by color touch screen to support problems solved solution
Sheets will be fix by pins
Adopt zooming-in technology for checking
Tech.Specification
Item No. JGDZ-500+
Overall Dimension L1250 *W300 *H1600mm
Machine Weight Approx. 200 kg
Electricity Input Voltage: AC220V 50/60Hz
Current: 10A
Power Consumption 1KW
Compressed Air 6.00 kg/cm²
Compress Air Consumption 80L/min
Control Technology Servo Positioning+PLC Control
Servo Precision X, Y=0.0125mm
Tolerance ±0.02-0.05mm
Operator 1 Person
Pass Rate 99.80%
Applicable materials PVC/PC/PETG/ABS and etc.
Output Speed 500 PCS/Hour
