Keysight 8495D Manual Attenuator, 26.5 GHz, 70 dB, 10-dB Steps | Agilent, HP en North Charleston, Carolina del Sur, USA
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Mpn
- 8495D
- Categoría
- Equipo analítico general en USA
- Subcategoría
- Variable/step attenuators
- Subcategoría 2
- Signal sources & conditioning
- Subcategoría 3
- Test, measurement & inspection
- ID de Anuncio
- 103715608
Descripción

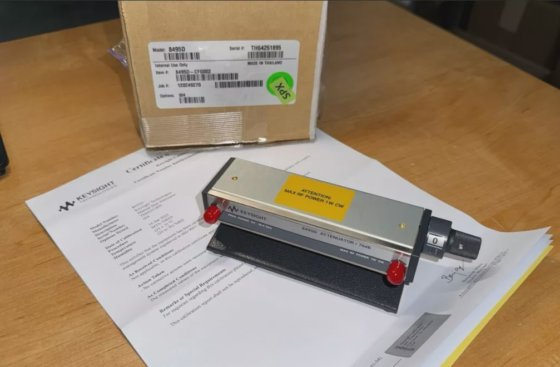

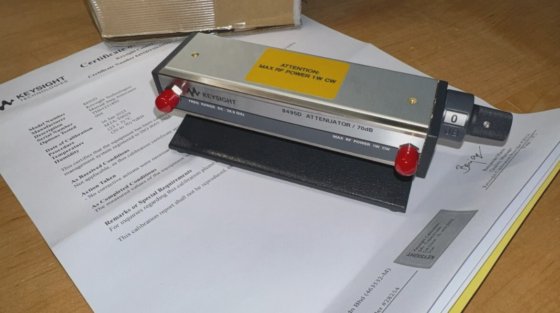

Keysight 8495D Manual Attenuator, 26.5 GHz, 70 dB, 10-dB Steps
Our purchasing team accidentally duplicated an order for this item and the return period has passed. Our Mistake = Your Savings!

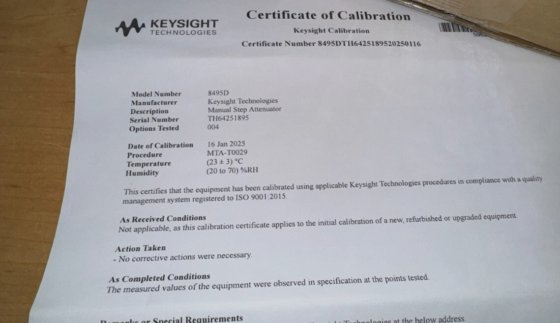

Buy now in new condition at a fraction of the MSRP! Includes certificate of
calibration
from the manufacturer dated 1/16/2025
Superior RF performance
Frequency range: dc to 26.5 GHz
Insertion loss at 0 dB: 0.4 dB + 0.09 dB / GHz
Maximum SWR: 1.6 to 12.4 GHz, 1.9 to 18 GHz, 2.2 to 26.5 GHz
Repeatability and life span
Repeatability life: 0.03 dB max 5 million cycles per section, typical
5 million cycles per section
Power handling
Maximum RF input power: 1 W (average), 100 W (peak)
Features
Connector type: 3.5 mm female
The Keysight 8495D dc to 26.5 GHz manual step attenuator offers exceptional repeatability and reliability. It provides attenuation in 10-dB steps from 0 to 70 dB.
$1,800 USD
