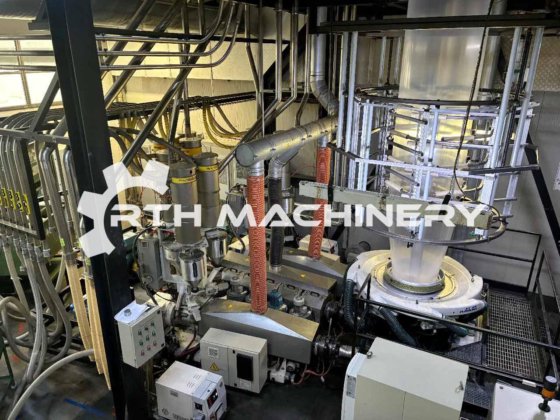

2006 BANDERA 2400 en Sant Gregori, Cataluña, España

Especificaciones

Condición
usado
Año
2006
Número de stock
4088
Anchura de trabajo (mm)
2400
Capas
3
Number of layers
3
Film structure
ABC
Material
LDPE, LLDPE.
Film width
2400
Output (kg/h)
400kg/h depending on materials
Screw diam 1
65mm
Description 1
AC motor 75kW, gravimetric dosing unit Plascontrol 4 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
Screw diam 2
85mm
Description 2
AC motor 132kW, gravimetric dosing unit Plascontrol 4 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
Screw diam 3
65mm
Description 3
AC motor 75kW, gravimetric dosing unit Plascontrol 3 comp, with vacuum suction system. Sella water thermo-regulation for feeding area, lever type screen changer
Head description
IBC with auto control via 3 ultrasonic sensor for diam measurement. Air ring K Design KARAT with Vario-cool automatic thickness profile control,
Die diam (mm)
450mm Inserts available for gap 0.8, 1.4 and 2.4 mm
Thickness control system
K-Design automatic thickness profile control. System upgraded in 2020 with new sensor, HMI
Bubble cage
motorised adjustments
Panel for gussets
no
Take off unit
Rotating
Corona treatment
Softal 2 side (2 side for tubular or 1 side for each film)
Web guide
E+L
Rewinder type
Double back to back
Rewinder max reel diameter
1200
Rewinder description
can work contact or gap winding
Subcategoría
Extruders coex3
ID de Anuncio
101767527

Descripción

Ref. 4088- Used BANDERA 2400, year 2006
Manufacturer: BANDERA
Year: 2006
Extruder 1 Layer ref: : A
Extruder 2 Layer ref: : B

Extruder 3 Layer ref: : C
Additional Information:
Micro hole device make FBF
2 Frigo system air chillers, recently changed
Width measurement device after take off unit
