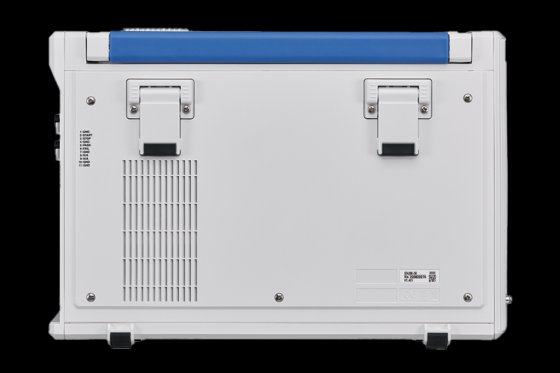

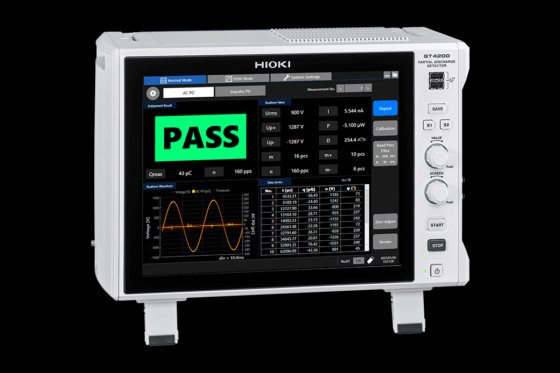

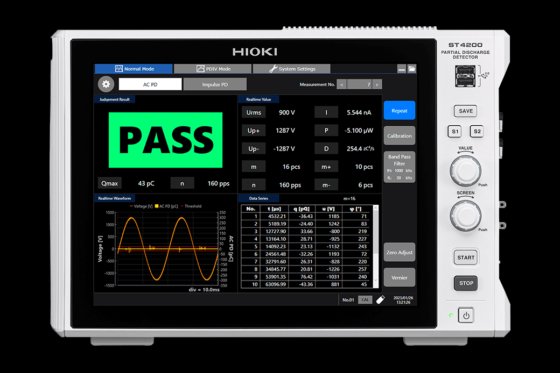

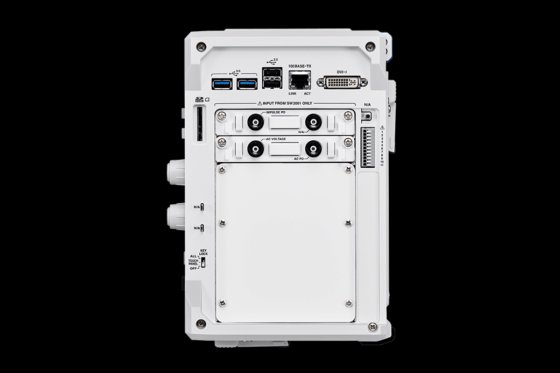

PARTIAL DISCHARGE DETECTOR ST4200 en Nagano, Japón
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Detection method
- Discharge current detection using CT and digital filters Conforms to the detection method in IEC 61934 Edition 2.0.
- Test frequency range (applied voltage)
- 45 Hz to 1.1 kHz
- Charge quantity measurement range
- 10 pC ≤ Q ≤ 500 pC (test piece capacitance C: 200 pF ≤ C < 2 nF) 10 pC ≤ Q ≤ 2500 pC (test piece capacitance C: 2 nF ≤ C ≤ 10 nF)
- Measurement parameters
- [Normal mode] PD peak discharge magnitude (Qpk), pulse sequence PD count (m) [PDIV mode] (normal mode parameters plus the following) PD inception voltage (PDIV), repetitive PD inception voltage (RPDIV), repetitive PD extinction voltage (RPDEV), PD extinction voltage (PDEV), repeating PD peak discharge magnitude (RQpk)
- Sampling rate
- 200 MS/s
- Control description
- Cooperative control of withstanding voltage tester and impulse winding tester used as high-voltage generators for partial discharge testing
- Compatible instruments (as of feb. 2025)
- Automatic Insulation/Withstanding HiTester 3153, Impulse Winding Tester ST4030A, etc
- Functions
- Graph display function, judgment function
- Save destination
- SD memory card, USB drive, SSD (Use only storage media sold by Hioki.)
- Effects of radiative radio frequency electromagnetic fields
- 50 pC or less (at 10 V/m)
- Effects of conductive radio frequency electromagnetic fields
- 50 pC or less (at 10 V)
- Effects of pulse noise superposed on power supply
- 50 pC or less (with pulse noise of 1 kV and pulse width of 50 ns)
- Interfaces
- LAN, USB, RS-232C* (please use a commercially available USB-serial conversion cable.), EXT. I/O (measurement start, measurement cancel, overall judgment PASS, overall judgment FAIL) *For connecting to secondary instruments (e.g., Automatic Insulation/Withstanding HiTester 3153)
- Power supply
- Rated supply voltage: 100 to 240 V AC; rated power: 300 VA
- External dimensions
- Approx. 353 mm (13.9 in.) W × 235 mm (9.25 in.) H × 154.8 mm (6.09 in.) D (excluding protruding parts)
- Mass
- Approx. 7.3 kg (257.5 oz.) (with U8332); approx. 7.1 kg (250.4 oz.) (without U8332)
- Included accessories
- Power cord × 1, operating precautions × 1, startup guide × 1
- Subcategoría
- Partial discharge tester
- ID de Anuncio
- 101662010
Descripción
Compatible with the SW2001 High Voltage Multiplexer
Noise-resistance through high-frequency CT
AC and Surge dual-mode partial discharge detection
Discover latent insulation defects in motor windings with the AC PD test (IEC 60270 and IEC 60034-27-1 compliant) and surge PD test (IEC 61934 Ed. 2 and IEC60034-27-5 compliant). The ability to select between the two types of PD tests allows you to customize your inspection process to the specific needs of each motor, maximizing the detection of latent failures.
Partial discharge testing on production lines with a microwave antenna is highly susceptible to noise interference. Using a high-frequency CT minimizes noise, simplifies installation by reducing the need for precise positioning, and thus prevents measurement errors.
Complex testing environments often come with high noise which are difficult to reduce.
